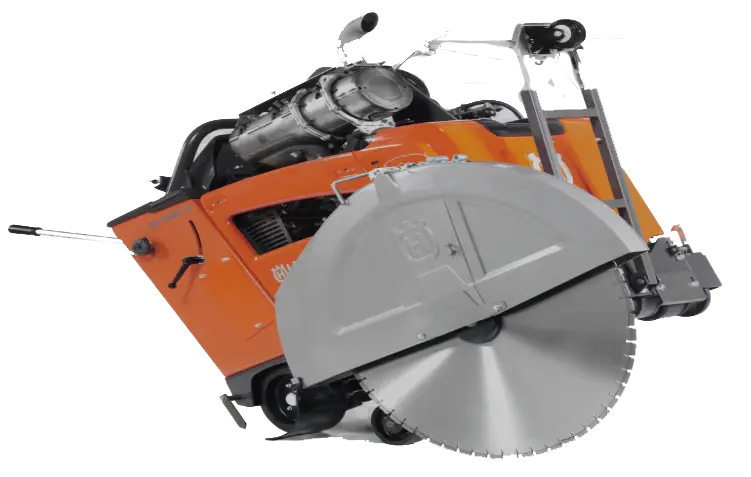

The Husqvarna FS 5000D Floor Saw, the diesel-powered precision cutter for professional concrete and asphalt applications.

Designed for deep, straight cuts in roads, industrial floors, and large-scale civil engineering projects.

Equipped with a powerful diesel engine and up to 30" blade capacity for high-performance cutting depth and speed.

Ideal for expansion joints, trenching, and structural modifications requiring accuracy and durability.

Features intuitive digital controls, automatic depth stop, and cruise control for enhanced operator efficiency.

Low vibration design and ergonomic layout reduce fatigue and improve handling during extended use.

Built for productivity and reliability — a trusted choice for contractors demanding consistent results on demanding sites.

Motor manufacturer Yanmar
Motor spec 4TNV88C-DHQ(EPA/CARBTier4 Final,EUstage IIIB)
Max output (As rated by the engine manufacturer) 35.5 kW/ 47.6 hp
Engine/motorRPM pos1:3000 rpm
Cylinders 4
Numberof strokes 4-stroke engine
Cylinder displacement 2189 cm³ / 133.6 cu.inch
Cylinder bore 88mm/ 3.46 inch Cylinder stroke 90mm/ 3.54 inch
Fuel tank volume 24.5 lit / 6.5 gal.
Air filter type Multi stage
Starter Electric
Engine cooling Liquid /Air
Number of belts 12
Displacement, l 2.189 lit Oil capacity, l 7.11 lit
Output RPM 3197 / 2400 / 1866 / 1628 / 1355rpm
Blade diameter range,min-max 350-900mm/ 14-36 "
Diamondblade,max 900mm/ 36 "
Max cutting depth 0mm/0inch
Spindle diameter 25.4mm/ 1 "
Blade depth control Electrohydraulic
Power at blade shaft 31kW/ 42 hp
Blade control Electrohydraulic
Blade shaft diameter 54mm/ 2.13 inch
Blade shaft drive Dual 6-groove banded 3VXV-belts (12 grooves total)
Blade coolant Vertically mounted tubes
Blade flanges Quick disconnect
Arbor size 25.4mm/ 1 "
Axle front 25mm/ 0.98 inch
Rear axle type Hydraulic
Transmission type Dual motor
Transmission speed 0-37.19 m/min / 0-122 fpm
Handle bars Multi position
Primarywheel size Outside diameter: 152.4Wheel width: 50.8 Inner bore: 25mm/Outside diameter: 6 Wheelwidth: 2 Inner bore: 0.98 "
Secondary wheel size Outside diameter: 254 Wheelwidth: 76.2 Inner bore: 25.4mm/Outside diameter: 10Wheel width: 3 Inner bore: 1 "
Blade guard type Slip-on
Weight 771 kg / 1700 lbs
Product size, LxWxH 1753x844x1332mm/ 69x33.2x52.4 inch
Soundpower level, guaranteed (LWA) 119 dB(A)
Sound pressure 102 dB(A)
Hand arm vibration (Aeq) <2.5m/s²
